Connectivity Services

Service Overview

Item Co-Location Service Proximity Service Kansai Proximity Service
Eligible Users
  • Trading participants
  • CSP
    (Information vendors, ISV, etc.)
    (*1)
  • Trading participants
  • CSP
    (Information vendors, ISV, etc.)
    (*1)
  • Trading participants
  • CSP
    (Information vendors, ISV, etc.)
    (*1)
Applicable Systems
  • arrowhead/FLEX
    The auction trading of all cash products such as stocks and CBs,
    Market data distribution of cash product
    FLEX
  • J-GATE
    Futures and options trading,
    Off-auction futures and options,
    Market data distribution of futures and options
  • *including TOCOM
  • ToSTNeT
    Off-auction trading of cash products
    ToSTNeT
  • arrowhead/FLEX
    The auction trading of all cash products such as stocks and CBs,
    Market data distribution of cash product
    FLEX
  • J-GATE
    Futures and options trading,
    Off-auction futures and options,
    Market data distribution of futures and options
  • *including TOCOM
  • ToSTNeT
    Off-auction trading of cash products
    ToSTNeT
  • JSCC
  • Target
  • JASDEC
  • TFX
  • arrowhead/FLEX
    The auction trading of all cash products such as stocks and CBs,
    Market data distribution of cash product
    FLEX
  • J-GATE
    Futures and options trading,
    Off-auction futures and options,
    Market data distribution of futures and options
  • *including TOCOM
  • ToSTNeT
    Off-auction trading of cash products
    ToSTNeT
  • JSCC
  • Target
  • JASDEC
  • TFX
Power Source
  • 100V and 200V is provided
    as standard
    (Power source is addable)
  • Redundant configuration available
  • 100V or 200V

  • Redundant configuration available
*Provided by designated
  data center operator
Cooling Capacity
  • Up to 8kVA per rack
  • Up to 4kVA per rack
*Provided by designated
  data center operator
Rack Specifications
  • Up to 46 units available
  • W800mm, D1200mm, H2200mm
  • Up to 40 units available
  • W695mm, D1000mm, H2000mm
*Provided by designated
  data center operator
Rental Unit
  • Per rack
  • Per rack
*Provided by designated
  data center operator
Restricted Entry
  • Entry is restricted to users' employees and entrusted vendors
  • Entry is available:
    from 04:30PM to 10:30PM
    on weekdays
    from 09:00AM to 07:00PM
    on weekend/holidays
    (prior registration of entry
      is required)
  • Prior submission of the written oath on confidentiality is required
  • Entry is restricted to users' employees and entrusted vendors
  • Entry is possible 24 hours a day, 7 days a week
    (prior registration of entry
      is required)
*Provided by designated
  data center operator
Emergency Services
  • [Power on/off],
    [Visual check of server LED],
    [Cable disconnection/
     reconnection]
    from 7:00AM to 4:30PM
    on weekdays
  • None (due to access at any time)
*Provided by designated
  data center operator
Monitoring Services
  • 24 hours a day, 7 days a week
  • 24 hours a day, 7 days a week
  • 24 hours a day, 7 days a week
External Connection
  • Provision of "arrownet" lines connect from the Co-Location Area to the devices
    in external area
  • Provision of lines connect
    from the Proximity Area
    to the devices in external area
  • Other than the External Connection Service provided
    by TSE, users may set up their own external connections
    through carrier network services
  • Provision of lines connect
    from the Kansai Proximity Area
    to the devices in external area
  • Other than the External Connection Service provided
    by TSE, users may set up their own external connections
    through carrier network services
Internal Connection
  • Unicast
    -Provision of lines from
     the Co-Location Area
     to the JPX trading systems
     for mainly trading purpose
     *Bandwidth is selectable
       from 1Gbps or 10Gbps
     *The interface is selectable
  • Multicast
    -Provision of lines from
     the Co-Location Area to
     the Market Information System
     for receiving market information
     *Bandwidth is selectable
       from 1Gbps or 10Gbps
     *The interface is selectable
  • Unicast-Multicast Consolidated
    -Provision of lines which enable
     users to share and consolidate
     above unicast and multicast
     *Bandwidth is selectable
       from 1Gbps or 10Gbps
     *The interface is selectable
     *Users can place orders on
       trading system and receive
       market information from
       market information system
       by using 1 line
  • Provision of lines to Test System
    (arrownet)
  • arrownet
    -Provision of arrownet lines
     from the Proximity Area
     for trading and receiving
     market data
     *Bandwidth is selectable
       from 512Kbps to 1Gbps
      (arrownet)
  • Provision of lines to Test System
     (arrownet)
  • arrownet
    -Provision of arrownet lines
     from the Kansai Proximity Area
     for trading and receiving
     market data
     *Bandwidth is selectable
       from 512Kbps to 1Gbps
      (arrownet)
     *For Internal Connection
       (Independent),
       512Kbps and 1Mbps
       are not offered.
     *The physical line of internal
       and external connections
       can be shared.
  • Provision of lines to Test System
     (arrownet)
Inter-User Connection Service
  • To enable connection between
    racks of different users
  • To enable users to connect
    facilities in Co-Location Area and
    facilities in Proximity Area
  • To enable connection between
    racks of different users
*Provided by designated
  data center operator
Inter-Rack Connection
  • To enable connection between own racks
  • User can connect adjacent Rack Cabinets through cable holes
    on the side of Rack Cabinets
  • To enable users to connect
    facilities in Co-Location Area and
    facilities in Proximity Area
    (Inter-Area Connection)
    *Bandwidth is selectable
      from 10Mbps to 1Gbps
  • To enable connection between own racks
  • User can connect adjacent Rack Cabinets through cable holes
    on the side of Rack Cabinets
*Connection within the area
  is provided by the designated
  data center operator.

  • To enable users to connect
    facilities in Kansai Proximity Area
    and facilities in Co-Location Area
    (Inter-Area Connection)
    *Bandwidth is selectable
      from 512Kbps to 10Gbps
Time Synchronization Connection
  • Enable users to obtain time
    information by connecting user
    devices with Time Source Servers
    and others managed by Exchange
    *Selectable from NTP, PTP and
      GPS cable
  • N/A
*Provided by designated
  data center operator
Others
  • Service for receiving courier deliveries on behalf of addressee available
  • Cabinet rental service is available
  • Service for receiving courier deliveries on behalf of addressee available
  • Remote Hands service is available
    *Provided by designated
      data center operator

Service Fee

Item Co-Location Service Proximity Service Kansai Proximity Service
One-time Cost
  • Internal Connection Fee
    (per selected Interface)
  • External Connection Fee(*2)
  • Time Synchronization Fee
  • Electric Construction Fee
    (in case users add
       the power source)
  • Additional Patch Panel
    Construction Fee
    (in case users add
      the patch panel)
  • Electric Construction Fee
  • Service Introduction Fee
  • External Connection Fee(*2)
  • arrownet usage fee
    (Internal Connection)
  • Initial Inter-User Connection Fee
  • External Connection Fee(*2)
  • Racks and other facility-related*
    *For details, please contact
      the designated data center
      operator.
Monthly Cost
  • Basic Charge
    (flat rate, including Power
      and Cooling fee)
  • Internal Connection Fees
    - Unicast
    - Multicast
    - Unicast-Multicast Consolidated
  • External Connection Fee(*2)
  • Inter-User Connection Fee
  • Inter-Rack Connection Fee
    (In case users connect
      to proximity rack)
  • Time Synchronization
    Connection Fee
  • Basic Charge(flat rate)
  • Power and Cooling Fee
    - Electrical Usage Basic Fee
      (flat rate)
    - Electricity Usage Fee
      (metered rate)
  • Internal Connection Fees(*2)
    - arrownet
  • External Connection Fee(*2)
  • Inter-User Connection Fee
  • Internal Connection Fees(*2)
    - arrownet
  • External Connection Fee(*2)
  • Inter-User Connection Fee
  • Racks and other facility-related*
    *For details, please contact
      the designated data center
      operator.
  • CSP is Co-Location Service Support Provider(s), who provides a Trading Participant(s) with an order placement environment,
    or other services, by using a device(s) installed in the Co-Location Area.
  • The name of items are changed "arrownet Connection Basic Fee" or "arrownet Usage Fee" in the case of arrownet usage.

How to use service

TSE will accept applications for the Co-Location Service, the Proximity Service and the Kansai Proximity Service
as long as there is space available in the respective areas.
After completing the necessary procedures, users will be able to move their devices into the area.
TSE has compiled the documents required before commencing use of the services for the respective services.
If you wish to obtain a copy, please send an inquiry to the contact at the bottom of the page.
The process from application to device installation takes about 2-4 months (*).

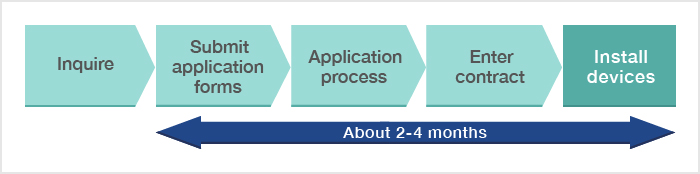

Flow of process until device installation

Flow of process until device installation
  • It is a rough schedule and it will be changed depending on the equipment configuration and network configuration.
